IDP-RELAY-6 FARENHYT

Product Overview

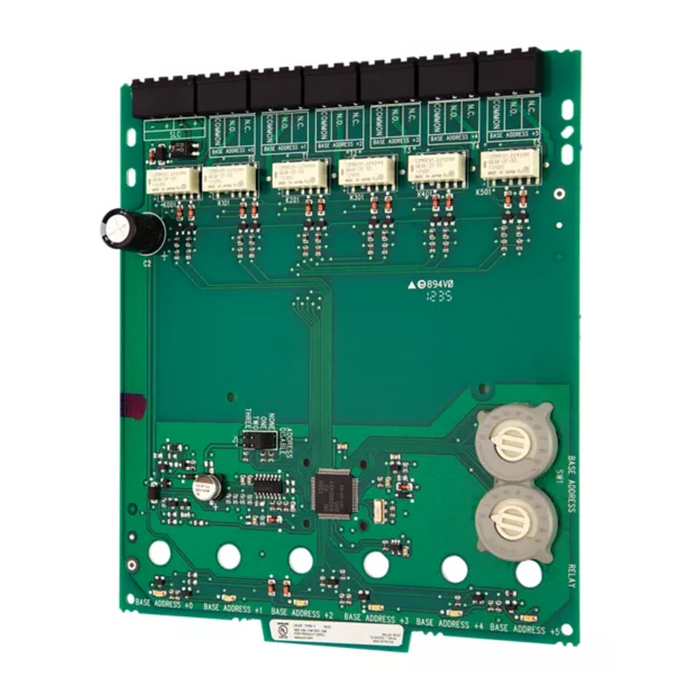

The Honeywell IDP-RELAY-6 is an addressable relay module designed for use with Farenhyt Series fire alarm control panels (FACPs). It features six Form C relays that allow the FACP to switch discrete contacts via code command. Up to three unused relays on the module can be disabled if not required.

Each IDP-RELAY-6 is programmed with a unique signaling line circuit (SLC) loop address, ensuring precise control and integration within the addressable fire alarm system. The relays can be used for a wide variety of normally open or normally closed applications. When an event occurs, the FACP triggers the appropriate relay(s) to perform the assigned operation.

Key Features

• Addressable relay module compatible with Farenhyt Series FACPs
• Six Form C relays (DPDT) for multiple control outputs
• Supports normally open or normally closed applications
• Up to three unused relays can be disabled if needed
• Unique SLC loop address for precise system integration
• Relay operation triggered directly by the FACP
• Flexible use for controlling external devices or circuits
