ISC-PDL1-WA18G BOSCH

Product Overview

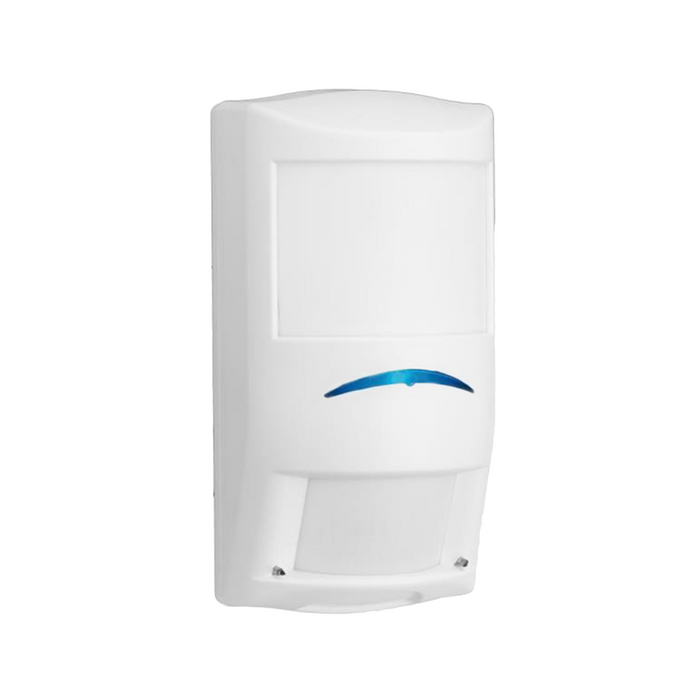

The Bosch ISC-PDL1-WA18G Professional Series TriTech+ is a high-security motion detector designed for critical commercial indoor applications. It utilizes Sensor Data Fusion technology to integrate inputs from five different sensors, including a 10.525 GHz microwave and high-density PIR. This model features Active Infrared Anti-Masking to detect attempts to sabotage or block the detector's field of view. With Cloak and Camouflage Detection Technology (C2DT), it ensures intruders are caught even if they attempt to mask their infrared signature. The unit offers massive 60 ft x 80 ft coverage and is designed for rapid installation with a self-locking enclosure and integrated bubble level.

Key Features

• Active Infrared Anti-Masking: Detects materials (spray, tape, objects) placed on or near the lens.
• Tri-Focus Optics: Three precision lenses (long-range, intermediate, and short-range) eliminate coverage gaps.
• Sensor Data Fusion: Sophisticated algorithm combines data from 5 sensors to virtually eliminate false alarms.
• C2DT (Cloak & Camouflage): Optimizes microwave detection for targets with low PIR heat signatures.
• Superior Coverage: 60 ft x 80 ft (18 m x 25 m) selectable to 25 ft x 33 ft.
• Flexible Mounting: Maintains 100% coverage at any height from 7 ft to 10 ft without adjustment.
• Microwave Frequency: 10.525 GHz.
• Relays: Solid-state supervised Form C relay for silent and reliable operation.
