LNL-X2210 LENEL

Product Overview

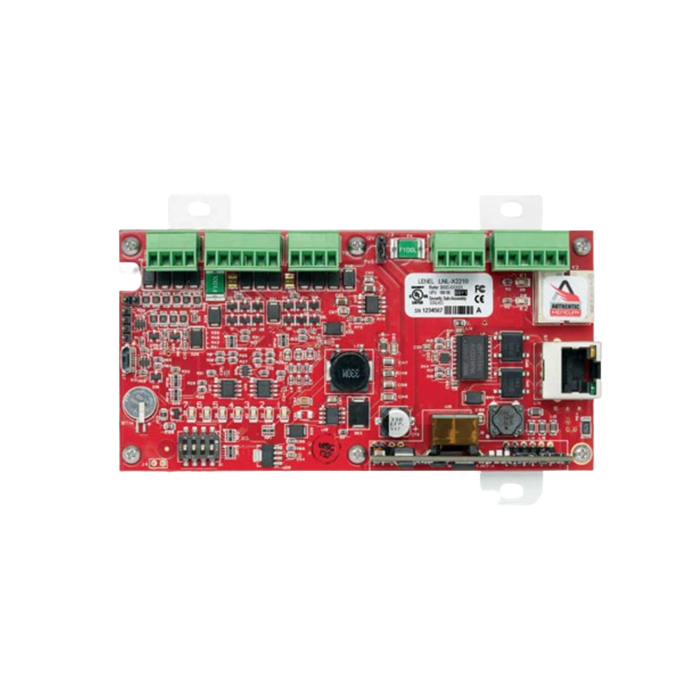

The LNL-X2210 Intelligent Single Door Controller (ISDC) is an Ethernet-ready edge device designed to control one or two readers at a single door within an OnGuard® system. It provides a high-performance, economical solution with Power over Ethernet (PoE) support (802.3af/802.3at). The controller operates independently of the host, allowing onboard devices to interact and execute access control functions reliably. It supports a wide range of reader technologies including Wiegand, Clock & Data, RS-485, OSDP™, keypads, LCD, and biometric devices, providing flexibility and versatility for single-door control.

Key Features

• Single door control for one or two readers
• Ethernet-ready with PoE support (802.3af/802.3at)
• Independent operation without host intervention
• Supports Wiegand, Clock & Data, RS-485, OSDP™, keypads, LCD, and biometric readers
• Optional RS-485 bus for LNL Door Interfaces and IO devices, supporting up to 8 additional addressed devices
• 6 MB on-board non-volatile flash memory
• Firmware stored in flash with background update capability
• Optional secondary communication via USB-to-Ethernet
• RNDIS support for USB connection to web configuration pages
