MIX-M502M MIRCOM
Warranty Terms and Conditions

MIX-M502M MIRCOM

by MIRCOM
DISCONTINUED
Sold out
$227.76 - $227.76
$227.76
$227.76 - $227.76
$227.76
Availability :
Out of stock

Product Overview

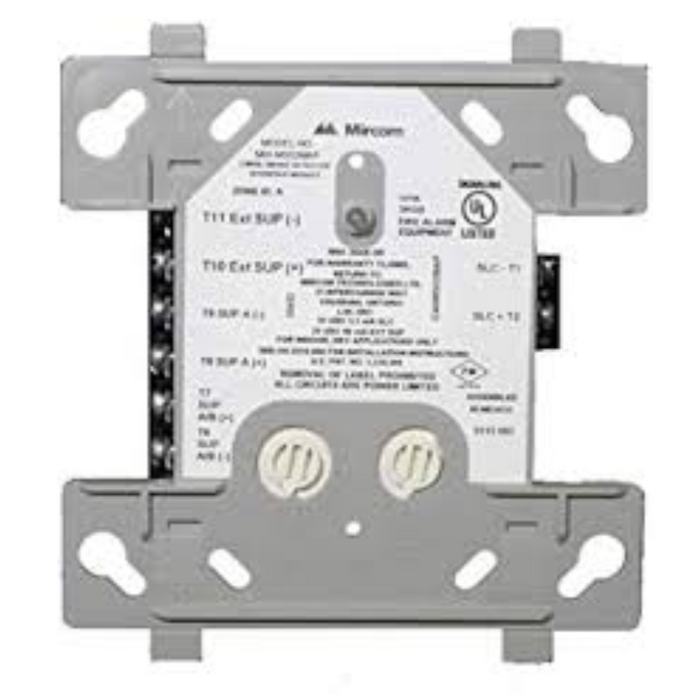

The MIX-M502M Zone Interface Module enables Mircom intelligent fire alarm control panels to interface with and monitor a zone of two-wire conventional smoke detectors. All connected two-wire detectors must be UL or ULC compatible with the module.

The module is addressed through the communication line of an intelligent Mircom system and transmits the status of a single zone to the fire alarm control panel. It supervises both the detector zone and the connection to the external power supply, reporting conditions as normal, open, or alarm.

Key Features

  • Interfaces one zone of two-wire conventional smoke detectors
  • Compatible with UL/ULC listed two-wire detectors
  • Addressable through the intelligent system communication line
  • Reports zone status as normal, open, or alarm
  • Supervises detector wiring and external power supply connection
  • Designed for use with Mircom intelligent fire alarm control panels
