RB5 ALTRONIX
by ALTRONIX
Sign in for pricing
Availability :
In stock
Product Overview

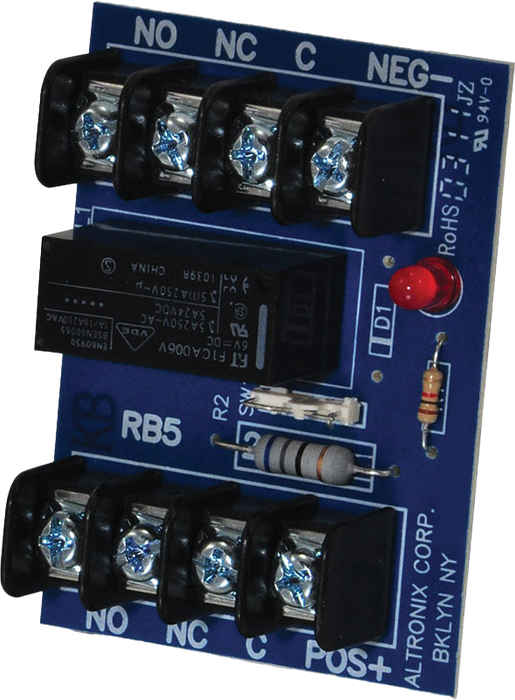

The Altronix RB5 is a versatile DPDT (Double Pole Double Throw) relay module designed for continuous-duty operation in security, fire, and access control systems. It is field-selectable for 6VDC or 12VDC operation. The module features heavy-duty 5A contacts and is designed for reliable switching of devices such as magnetic locks, electric strikes, or sirens. It is a UL Recognized component and comes with a snap track for simplified installation.
Key Features
- Double Pole Double Throw (DPDT) contacts
- Selectable 6VDC or 12VDC operation
- Contact Rating: 5A at 120VAC or 28VDC
- Low current draw: 120mA
- Screw terminals accommodate up to 12 AWG wire
- Includes Snap Track for easy mounting
- Dimensions: 2.75"L x 1.9"W x 1.35"H
