SILENT KNIGHT SK-Pull-DA

Product Overview

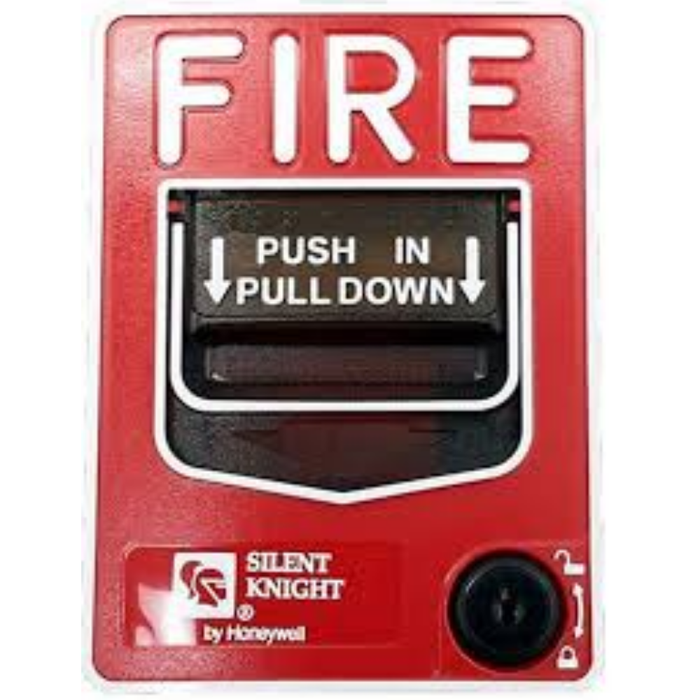

The Silent Knight SK-PULL-DA is a non-coded, dual-action addressable manual pull station designed for use with Silent Knight intelligent fire alarm control panels that support the Intelligent Device Protocol (IDP). It provides one addressable alarm initiating input, with the addressable module integrated directly inside the pull station for streamlined installation.

The dual-action design requires two deliberate motions to activate, helping reduce accidental alarms while ensuring reliable operation during emergencies. The SK-PULL-DA meets ADA requirements, includes clear visual and tactile indicators, and features durable construction suitable for demanding commercial and institutional environments.


Key Features

• Dual-action activation (lift/push and pull) to help prevent false alarms
• Addressable alarm initiating device with internal module
• Compatible with Silent Knight IDP-based intelligent panels
• Key-lock reset and test function for authorized personnel
• Dual-color LED visible through the handle

  • Flashing green: normal operation
  • Solid red: alarm condition

• ADA compliant

  • Meets ADAAG guidelines
  • 5 lb maximum pull force requirement

• Braille text and molded operating instructions on the handle
• Installer-accessible without causing an alarm condition
• Handle latches down with clear “Activated” indication
• Rotary address switches for fast and easy addressing
• Durable construction designed for long-term reliability
• UL Listed, including ANSI/UL 38 for manually actuated signaling devices
