ALTRONIX SMP3ET
by ALTRONIX
Sign in for pricing
Availability :
In stock
Product Overview

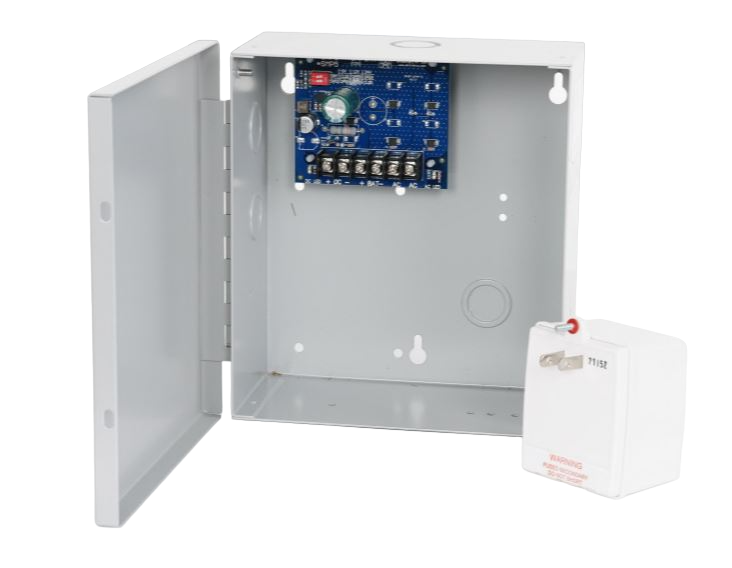

The Altronix SMP3ET is a complete power supply/charger kit that converts a 115VAC input into a selectable 6VDC, 12VDC, or 24VDC output. This kit includes the SMP3 board, a 24VAC/28VAC (100VA) transformer, and a BC300 enclosure. It delivers 2.5A of continuous supply current at 6VDC or 12VDC, and 1.5A at 24VDC. Designed for security and access control applications, it features a built-in battery charger with zero voltage drop during standby transitions and full regulation to protect sensitive electronic components.
Key Features
- Selectable output: 6VDC or 12VDC @ 2.5A; 24VDC @ 1.5A
- Complete Kit: Includes SMP3 board, T2428100 transformer, and BC300 enclosure
- Built-in charger for sealed lead acid or gel batteries
- Maximum charge current: 0.5A
- Automatic switchover to standby battery with zero voltage drop
- Filtered and electronically regulated output
- AC input and DC output LED indicators
- Short circuit and thermal overload protection
