SMP5 ALTRONIX
by ALTRONIX
Sign in for pricing
Availability :
In stock
Product Overview

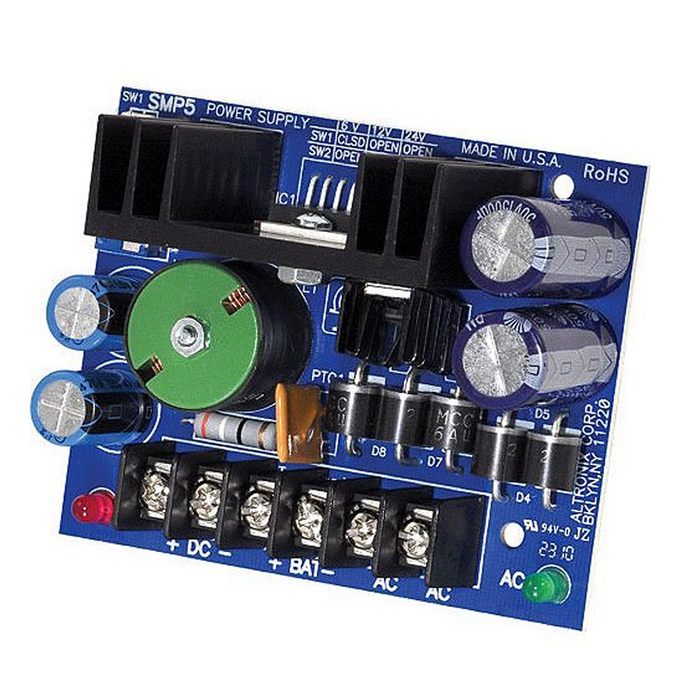

The Altronix SMP5 is a power supply/charger board that converts a low voltage AC input into a selectable 6VDC, 12VDC, or 24VDC output. It provides 4A of continuous supply current at 6VDC or 12VDC, and 3A at 24VDC. Designed as a core component for security, access control, and fire systems, this board-only unit includes a built-in battery charger and is engineered to deliver filtered, electronically regulated power to sensitive electronic devices without voltage spikes or noise.
Key Features
- Selectable output: 6VDC or 12VDC @ 4A; 24VDC @ 3A continuous supply current
- Requires external transformer (e.g., 24VAC/28VAC, 100VA)
- Built-in charger for sealed lead acid or gel batteries
- Maximum charge current: 0.5A
- Automatic switchover to standby battery with zero voltage drop
- Filtered and electronically regulated output
- AC input and DC output LED indicators
- Short circuit and thermal overload protection
