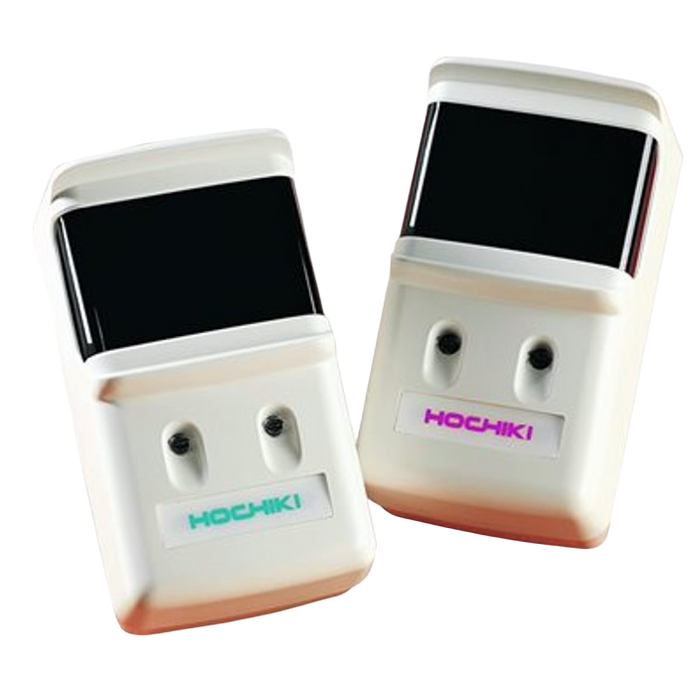

SPC-24 HOCHIKI

Product Overview

The Hochiki SPC-24 Projected Beam Smoke Detector is a high-performance smoke detection solution designed for large open areas where conventional detectors may be less effective. The system consists of an emitter and receiver that continuously monitor the transmitted light beam. When smoke crosses the beam path and reduces signal strength beyond the selected obscuration threshold, an alarm is triggered, ensuring rapid detection of potential fire hazards.

Key Features

• Microprocessor-based for reliable operation
• Easy setup and alignment with signal strength LEDs
• Provides 60 ft on-center linear protection over a range of 32.8 ft to 328 ft
• Automatic compensation for signal drift or lens contamination
• Three field-adjustable sensitivity settings (25%, 50%, 70% obscuration per span)
• Form A alarm and Form B trouble contacts
• Optional calibrated filters for verifying sensitivity
• Color-coded emitter (red) and receiver (green) for quick identification
• Voltage and RF transient protection
• External red LED indicates alarm status
