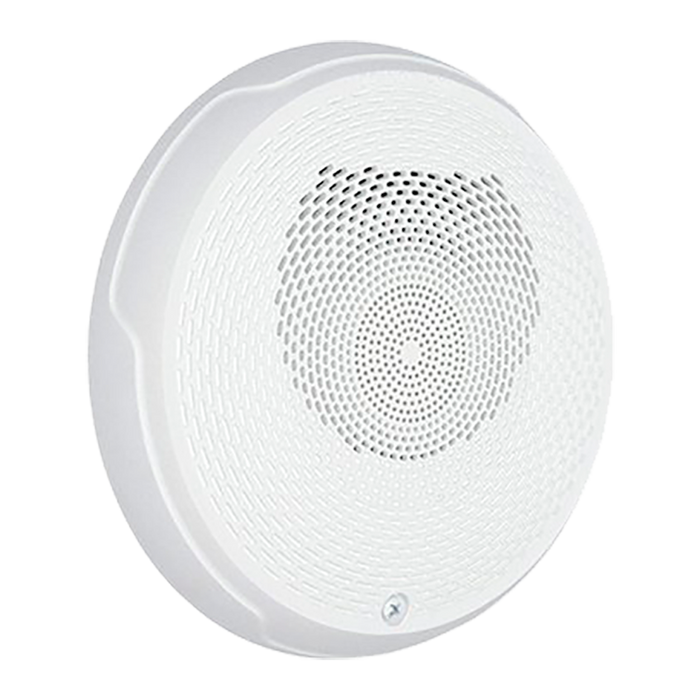

SPCWL SYSTEM SENSOR

Product Overview

The System Sensor L-Series speakers and speaker strobes are designed to reduce ground faults and speed installation through a plug-in design and universal mounting plate. Installers can pre-wire and verify continuity before attaching the device, while a protective cover prevents wire damage. These units deliver high-fidelity, high-volume sound and feature field-selectable settings for flexible application in a wide range of environments.

Key Features

• Plug-in design with protective cover to reduce ground faults
• Universal mounting plate with onboard shorting spring for wiring continuity testing
• No extension ring required for flush mounting
• Field-selectable ceiling candela settings: 15, 30, 75, 95, 115, 150, 177
• Automatic 12/24 V operation at 15 and 30 candela
• Rotary switch for speaker voltage (25/70.7 Vrms) and power (¼, ½, 1, 2 W)
• High-fidelity, high-volume audio output
• 520 Hz ±10% tone capability with compatible FACP
• Compatible with SpectrAlert Advance products and synchronization protocol
