D1XC1X05RDC024CN1A1C POTTER

Product Overview

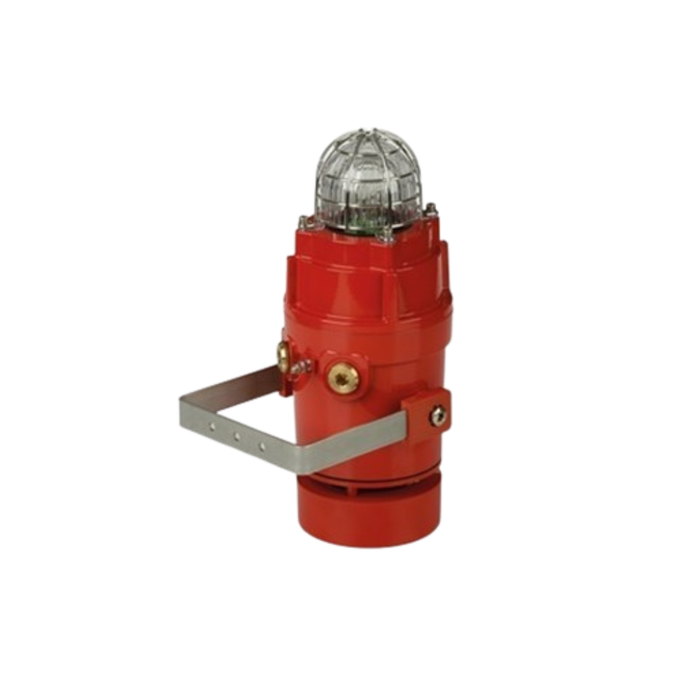

 The D1XC1X05RDC024CN1A1C is a high-performance fire alarm horn and strobe beacon designed for industrial and commercial environments. It delivers a maximum sound output of 110dB(A) and features 64 selectable alarm tones across four stages, which can be remotely triggered. The strobe beacon provides high-intensity visual alerts with multiple flash rate options and energy output of 5 Joules. The unit is built with a corrosion-resistant, marine-grade aluminum enclosure and is suitable for both indoor and outdoor installations, meeting IP66, NEMA 4/4X/3R/13 protection standards.

Key Features

• Maximum sound output: 110dB(A)
• 64 selectable alarm tones, 4 remotely triggered stages
• Automatic synchronization for multi-beacon and sounder systems
• Strobe beacon: 5 Joules energy, multiple flash rate options, various lens colors
• Lens colors available: Amber, Blue, Clear, Green, Magenta, Red, Yellow
• Marine-grade aluminum, powder-coated enclosure for corrosion resistance
• IP66, UL50E/NEMA 4/4X/3R/13 rated for indoor/outdoor use
• Line monitoring with optional EOL resistor or diode for DC versions
• Wide operating temperature range: -55°C to +85°C (-67°F to +185°F)
• Long-life strobe tube: over 5 million flashes at 70% emissions
• Pluggable, duplicated terminals for simplified installation and maintenance
• Weight: 4.9 kg (10.9 lbs)
